Secure Interactive Media Interface Definition (SIMID)
IAB Tech Lab

Living Standard,

This version:
https://interactiveadvertisingbureau.github.io/SIMID/
Issue Tracking:
GitHub
Editor:
License:

The SIMID Specification from the IAB Tech Lab is licensed a Creative Commons Attribution, Non Commercial, No Derivatives License. To view a copy of this license, visit creativecommons.org/licenses/by-nc-nd/4.0/legalcode or write to Creative Commons, 171 Second Street, Suite 300, San Francisco, CA 94105, USA.

About the IAB Technology Lab:
The IAB Technology Laboratory (Tech Lab) is a non-profit consortium that engages a member community globally to develop foundational technology and standards that enable growth and trust in the digital media ecosystem.. Comprised of digital publishers, ad technology firms, agencies, marketers, and other member companies, IAB Tech Lab focuses on improving the digital advertising supply chain, measurement, and consumer experiences, while promoting responsible use of data. Its work includes the OpenRTB real-time bidding protocol, ads.txt anti- fraud specification, Open Measurement SDK for viewability and verification, VAST video specification, and DigiTrust identity service. Board members include ExtremeReach, Facebook, Google, GroupM, Hearst Digital Media, Index Exchange, Integral Ad Science, LinkedIn, LiveRamp, MediaMath, Microsoft, Oracle Data Cloud, Pandora, PubMatic, Quantcast, Rakuten Marketing, Telaria, The Trade Desk, Verizon Media Group, Xandr, and Yahoo! Japan. Established in 2014, the IAB Tech Lab is headquartered in New York City with staff in San Francisco, Seattle, and London. Learn more at https://www.iabtechlab.com.

Abstract

Establishes a common and secure communication protocol between media (video and audio) players and executable ad units, providing rich ad experiences for viewers.

1. Version

1.0.1

2. Executive Summary

Secure Interactive Media Interface Definition (SIMID) is a standard for providing rich interactivity in the context of streaming audio and video (media) ads. While the Video Ad Serving Template (VAST) standard addresses how publishers discover various metadata assets related to an ad campaign, SIMID addresses how the publisher’s media player should communicate and interface with a rich interactive layer and vice versa. As such, one can think of the SIMID creative as one of the assets listed in a VAST document.

A main tenet of SIMID is the separation of the interactive layer from the media asset. This clear separation allows publisher players to be in control of their streams and enables use cases such as server-side ad insertion (SSAI), as well as live streaming.

SIMID was built with strong security from the ground up, and is designed to be sandboxed from the media player, providing peace of mind to publishers when serving ads from third party services. SIMID aims to provide the tools and controls to allow creatives to offer rich augmented user experiences while degrading gracefully if certain features are not supported.

SIMID ads sandboxing from the publisher player environment

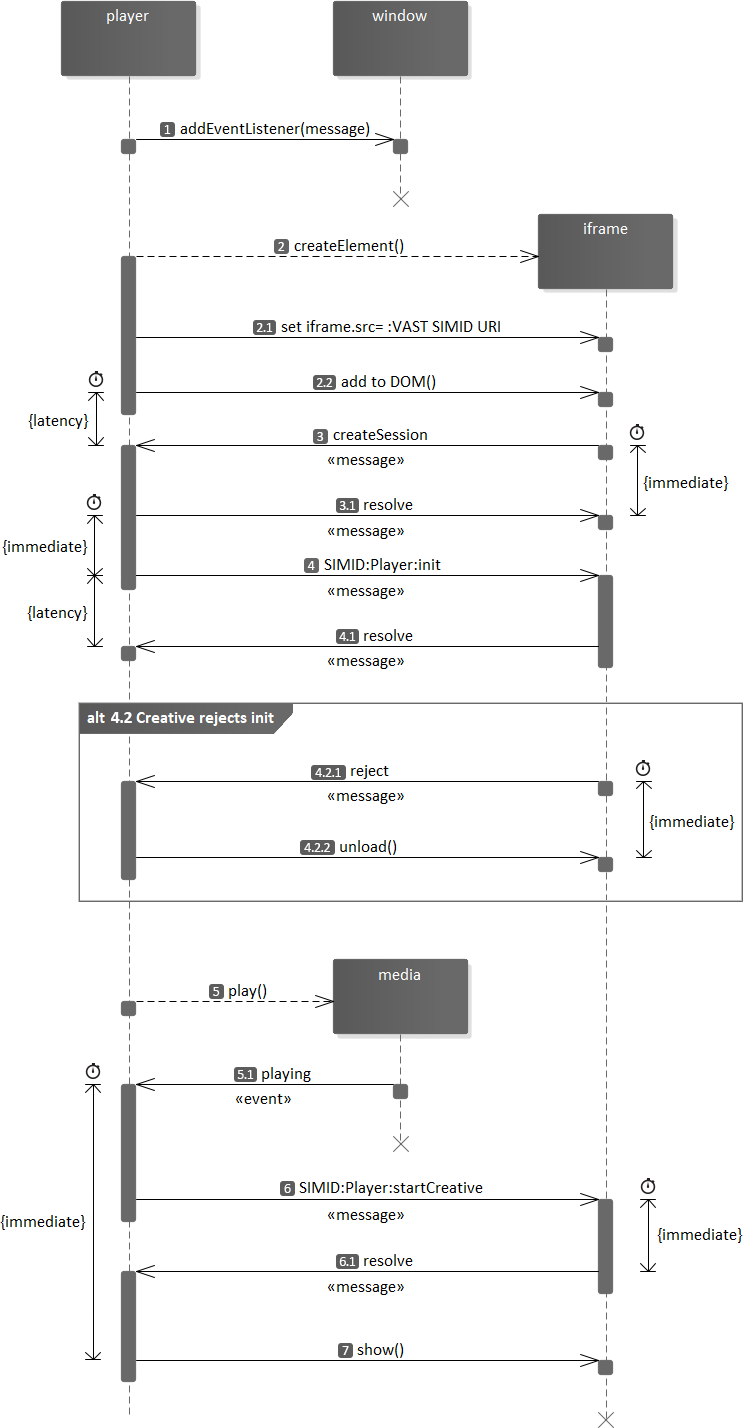

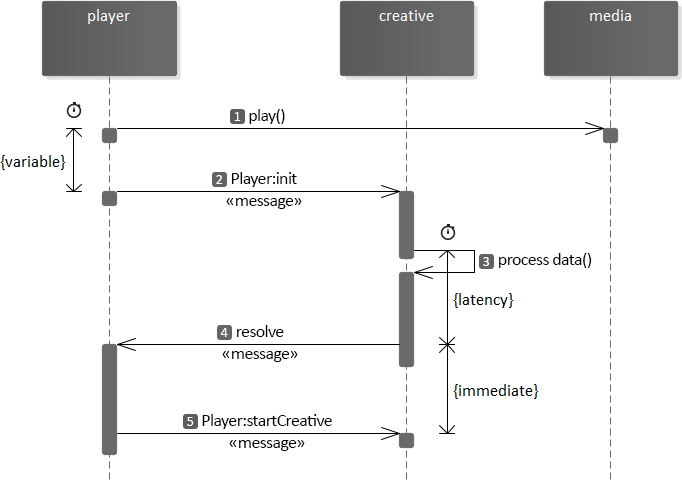

Normal Creative Initilaizatioin Sequence

A diagram showing SIMID ads sandboxed from the publisher player environment

SIMID is part of a broader effort to replace the older VPAID standard (more details in this blog post by the IAB Tech Lab). While Open Measurement replaces the use case of verification and measurement, SIMID replaces the use case of interactive streaming media ads, the original intended purpose of the VPAID standard. SIMID provides a path for VPAID deprecation and allows the industry to move to more secure and transparent standards. SIMID aims to gain broad industry adoption by ensuring that the standard is focused on the primary use case of interactivity.

2.1. SIMID vs. VPAID Comparison

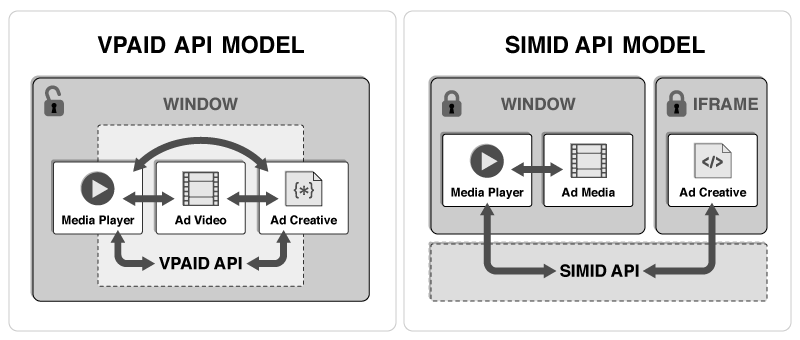

VPAID vs. SIMID APIs

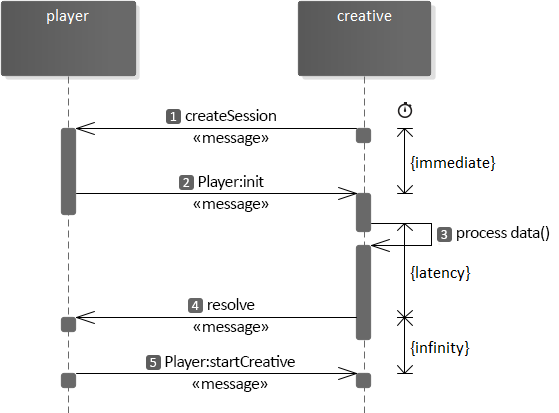

Normal Creative Initilaizatioin Sequence

SIMID vs. VPAID Comparison.

Feature VPAID SIMID
Security Creative directly accesses player DOM and shared global JavaScript context. Creative is sandboxed into a cross-origin iframe. No player DOM access or shared JavaScript context.
Ad media asset management Creative manages ad video loading and playback. Player manages ad media loading and playback (audio or video).
Pre-caching Only the VPAID script can be reliably pre-cached. Video asset cannot be pre-cached. Audio or video asset and SIMID creative can both be pre-cached.
Errors influence on performance or UX Fatal script errors from ad creative can result in significant player or publisher site performance and user experience deterioration (due to shared security sandbox). Fatal script errors from ad creative do not affect player or publisher site directly. Impact is limited to performance and user experience of the creative, only.
SSAI feasibility SSAI is not possible. Interactive creatives can be rendered in SSAI context.
Latencies Publishers are at the mercy of VPAID creative implementation efficiency and uncontrollable internal processes (verification, trading, wrapping, etc.). Each of these behaviors can impose significant latencies. Players can pre-load media and creative assets due to maintaining full control over decisioning, loading and displaying of the ad unit. Ad decisioning latency is removed, risks of internal processes are minimized due to separate security sandboxes.
API Both the player and creative must support specific JavaScript functions. Each component calls functions directly on the other in a shared security sandbox (insecure). No functions are directly called on either component by the other. All communication is achieved using standard postMessage API and SIMID messaging protocol across separate security sandboxes.
Ad blocking VPAID can prevent an ad from rendering. SIMID is built for interactivity and was not designed for ad blocking. The Open Measurement SDK (OMID) is expected to support this capability in the future.
Verification services Verification features can be fully implemented and executed in shared DOM and global Javascript context. SIMID creative cannot access any DOM, elements, or JS context outside of its own security sandbox so is unable to handle any verification use cases. OMID handles the use case for verification allowing SIMID to be focused on interactivity only.
Creative wrapping VPAID ads can load other ads (including other VPAID ads). Cannot be executed.
Audio advertising Out of standard scope. Enables interactive components serving with audio ads.
Environment constraints Player must be an HTML video element. Player can be native or web so long as the SIMID creative has sandboxed DOM access (such as a web view).
Resource MIME type application/javascript text/html

2.2. Intended Audience

The SIMID standard is geared toward the digital media advertising community. Anyone who works with digital media advertising products or services can benefit from reading the Introduction sections of this document. The Messaging Protocol, API Reference, and later sections predominantly target software engineers.

3. Introduction

Throughout this document, the SIMID interactive component is referred to as a “SIMID creative” or “creative”.

Compliance with SIMID requires support for all features and behaviors specificied in this document, unless a given feature or behavior is explicitly designated as optional. Standard RFC language will be used. See https://tools.ietf.org/html/rfc2119 for RFC 2119 for enforcement terminology used in this standard.

3.1. SIMID Interactive Creative Nature

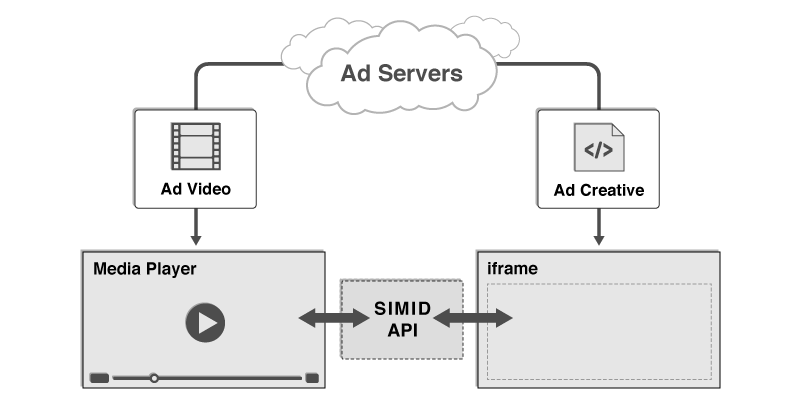

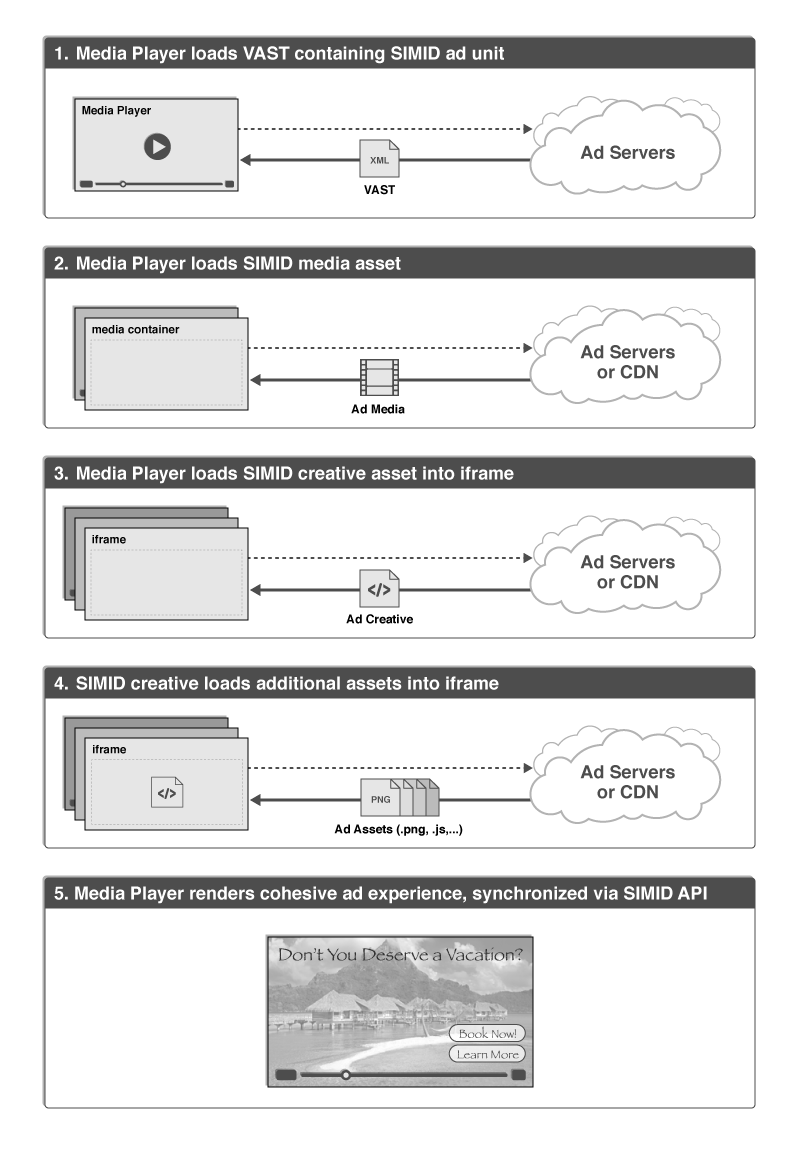

SIMID Assets loading

SIMID Interactive Creative Nature

A SIMID creative can be included in a VAST document by way of an <InteractiveCreativeFile> element. The text within this element must be a url which returns an HTML document. When loaded into an iframe by a media player, this HTML document will define the SIMID creative’s content, and will direct the web browser or host application to load any additional assets required by that creative (images, CSS, scripts, etc.).

The <InteractiveCreativeFile> element is defined as a child of the <MediaFiles> element in VAST 4.0. For more technical details, see the § 5 Referencing a SIMID creative from VAST section.

<MediaFiles>
    <MediaFile>https://example.com/mediafile.mp4</MediaFile>
    <InteractiveCreativeFile type="text/html" apiFramework="SIMID" variableDuration="true">
        <![CDATA[https://adserver.com/ads/creative.html]]>
    </InteractiveCreativeFile>
</MediaFiles>

3.2. SIMID Ad Serving Flow

The SIMID ad experience is delivered by a web browser or application concurrently rendering an ad’s streaming audio or video file and its interactive creative file. The media player obtains urls for both files from a VAST document, loads the files, assembles them into a single ad unit, and ensures a cohesive ad experience.

SIMID creative loading and presentation process.

SIMID creative loading and presentation process.

3.3. Player and Creative Communication

A media player and a SIMID creative communicate by sending serialized messages back and forth to each other.

Because a SIMID creative is an HTML document that is served from an advertiser’s web domain, and it is loaded by a media player into an iframe within a web page hosted on a different domain, loading the creative requires the creation of a cross-origin iframe (also known as an "unfriendly iframe"). Due to browser sandbox security restrictions, JavaScript communication across this type of iframe can only be achieved via the standard postMessage API.

SIMID API requirements govern message construction conventions as well as the message data structure. See sections § 8 Messaging Protocol, § 4 API Reference for more information.

3.4. Scope and Limitations

The use of HTML is only required for the SIMID creative, not the publisher property hosting that creative. As long as the publisher can load HTML and communicate with it over the standard postMessage API, it can support SIMID. In practice, this means that SIMID can be hosted in web page iframes, mobile app web views, and other platforms. In fact, SIMID can better support mobile use cases than VPAID because a native app or media player directly controls loading and playback of a SIMID ad unit’s media asset (whereas a VPAID ad unit offers no direct access or control of its internal media asset).

Note: Certain devices, including TV sets and OTT boxes, restrict loading of external assets, have limited HTML rendering capabilities, or are unable to display HTML along with audio or video. These devices are incapable of implementing SIMID. Devices that support HTML and JavaScript can support SIMID - on both client side as well as in server side ad insertion scenarios

SIMID cannot be used to decide which media to show on the client pre-impression. This is because the media file must be present alongside the SIMID creative and delivered via the VAST MediaFile node.

SIMID should not be set up to measure viewability.

Any use of the SIMID spec to support something other than interactive or dynamic content within the ad unit is counter to the intentions of this spec.

4. API Reference

SIMID API is a set of messages and data structures that ad-rendering parties exchange via § 8 Messaging Protocol.

4.1. Reference Table

API resolve reject
§ 4.2.1 SIMID:Media:durationchange n/a n/a
§ 4.2.2 SIMID:Media:ended n/a n/a
§ 4.2.3 SIMID:Media:error n/a n/a
§ 4.2.4 SIMID:Media:pause n/a n/a
§ 4.2.5 SIMID:Media:play n/a n/a
§ 4.2.6 SIMID:Media:playing n/a n/a
§ 4.2.7 SIMID:Media:seeked n/a n/a
§ 4.2.8 SIMID:Media:seeking n/a n/a
§ 4.2.9 SIMID:Media:stalled n/a n/a
§ 4.2.10 SIMID:Media:timeupdate n/a n/a
§ 4.2.11 SIMID:Media:volumechange n/a n/a
§ 4.3.1 SIMID:Player:adSkipped § 4.3.1.1 resolve n/a
§ 4.3.2 SIMID:Player:adStopped § 4.3.2.1 resolve n/a
§ 4.3.3 SIMID:Player:appBackgrounded § 4.3.3.1 resolve n/a
§ 4.3.4 SIMID:Player:appForegrounded n/a n/a
§ 4.3.5 SIMID:Player:fatalError § 4.3.5.1 resolve n/a
§ 4.3.6 SIMID:Player:init § 4.3.6.1 resolve § 4.3.6.2 reject
§ 4.3.7 SIMID:Player:log n/a n/a
§ 4.3.8 SIMID:Player:resize n/a n/a
§ 4.3.9 SIMID:Player:startCreative § 4.3.9.1 resolve § 4.3.9.2 reject
§ 4.4.1 SIMID:Creative:clickThru n/a n/a
§ 4.4.2 SIMID:Creative:fatalError n/a n/a
§ 4.4.3 SIMID:Creative:getMediaState § 4.4.3.1 resolve n/a
§ 4.4.4 SIMID:Creative:log n/a n/a
§ 4.4.5 SIMID:Creative:reportTracking § 4.4.5.1 resolve § 4.4.5.2 reject
§ 4.4.6 SIMID:Creative:requestChangeAdDuration § 4.4.6.1 resolve § 4.4.6.2 reject
§ 4.4.7 SIMID:Creative:requestChangeVolume § 4.4.7.1 resolve § 4.4.7.2 reject
§ 4.4.8 SIMID:Creative:requestFullscreen § 4.4.8.1 resolve § 4.4.8.2 reject
§ 4.4.9 SIMID:Creative:requestExitFullscreen § 4.4.9.1 resolve § 4.4.9.2 reject
§ 4.4.10 SIMID:Creative:requestPause § 4.4.10.1 resolve § 4.4.10.2 reject
§ 4.4.11 SIMID:Creative:requestPlay § 4.4.11.1 resolve § 4.4.11.2 reject
§ 4.4.12 SIMID:Creative:requestResize § 4.4.12.1 resolve § 4.4.12.2 reject
§ 4.4.13 SIMID:Creative:requestSkip § 4.4.13.1 resolve § 4.4.13.2 reject
§ 4.4.14 SIMID:Creative:requestStop § 4.4.14.1 resolve § 4.4.14.2 reject

4.2. Messages Triggered by Media Element Events

SIMID specifies a group of messages that describe ad media states. The player prepends such messages with the SIMID:Media namespace.

SIMID borrows media-related semantics and naming conventions from the standard HTMLMediaElement behavior. In player implementations where an HTMLMediaElement is not used, the player must translate events and property values into the associated SIMID:Media message.

In HTML environments, SIMID:Media messages contain the original media event type.

  1. HTMLMediaElement dispatches event play.

  2. Player sets Message.type = SIMID:Media:play.

The player must report SIMID:Media messages immediately after the associated event occurs.

The player must not queue messages in cases where the creative iframe initialization happens in the middle of the ad media playback. The player posts only messages that communicate events that occur after the iframe initialization.

SIMID:Media messages are information-only; they do not trigger resolve/reject responses from the creative.

The player may elect to report all standard HTML media events to the creative. However, the creative should not expect to receive messages with optional types. (See table below.)

Some SIMID:Media messages - durationchange, error, timeupdate, and volumechange - require additional data provided with Message.args parameters.

Required and optional media event types.

Event Name Required Event Name Required Event Name Required
abort interruptend seeked
canplay loadeddata seeking
canplaythrough loadedmetadata stalled
durationchange loadstart suspend
emptied pause timeupdate
encrypted play volumechange
ended playing waiting
error progress
interruptbegin ratechange

4.2.1. SIMID:Media:durationchange

When the duration of the media changes due to the player receiving the media resource metadata (in HTML, HTMLMediaElement dispatches the durationchange event), the player posts a SIMID:Media:durationchange message.

dictionary MessageArgs {
  required float duration;
};
duration,
The duration of the media in seconds. In HTML, HTMLMediaElement.duration value.*

4.2.2. SIMID:Media:ended

When the media playback completes (in HTML, HTMLMediaElement dispatches an ended event), the player posts a SIMID:Media:ended message.

4.2.3. SIMID:Media:error

When playback throws an exception (in HTML, HTMLMediaElement dispatches an error event), the player posts a SIMID:Media:error message.
dictionary MessageArgs {
  required unsigned short error;
  required DOMString message;
};
error,
In HTML, the value of HTMLMediaElement.error.code. Codes:
  • 1 The media download was canceled
  • 2 Network error
  • 3 The player failed to decode the media
  • 4 Environment does not support media resource
message,
In HTML, the value of HTMLMediaElement.error.message.

4.2.4. SIMID:Media:pause

When the media pauses (in HTML, HTMLMediaElement dispatches a pause event), the player posts a SIMID:Media:pause message.

4.2.5. SIMID:Media:play

When media playback starts as a result of autoplay or its state is no longer paused (in HTML, HTMLMediaElement dispatches a play event), the player posts a SIMID:Media:play message.

4.2.6. SIMID:Media:playing

The player posts a SIMID:Media:playing message in one of the following cases:

In HTML, the player posts a Media:playing message when HTMLMediaElement dispatches a playing event.

4.2.7. SIMID:Media:seeked

When the user finished moving playhead into a new position (in HTML, HTMLMediaElement dispatches a seeked event), the player posts a SIMID:Media:seeked message.

4.2.8. SIMID:Media:seeking

When the user initiates seek operation (in HTML, HTMLMediaElement dispatches a seeking event), the player posts a SIMID:Media:seeking message.

4.2.9. SIMID:Media:stalled

When media data is not available for rendering (in HTML, HTMLMediaElement dispatches a stalled event), the player posts a SIMID:Media:stalled message.

4.2.10. SIMID:Media:timeupdate

The player communicates media playhead position by posting a SIMID:Media:timeupdate message. The message Media:timeupdate frequency should be not less than every 250ms.

In HTML, the player sends a Media:timeupdate message HTMLMediaElement dispatches a timeupdate event.

dictionary MessageArgs {
  required float currentTime;
};
currentTime,
The value in seconds. In HTML, HTMLMediaElement.currentTime property value.

In Server-Side Ad Insertion, the client-side media playback is a continuous stream which requires additional currentTime calculations. For the current ad, the player must compute the currentTime value as a delta between the actual playhead position and the time the ad started.

4.2.11. SIMID:Media:volumechange

When the media audio state changes (in HTML, HTMLMediaElement dispatches a volumechange event), the player posts a SIMID:Media:volumechange message.
dictionary MessageArgs {
  required float volume;
  required boolean muted;
};
volume,
The number between 0 and 1.*
muted,
true if audio is muted.*

4.3. Messages from the player

SIMID specifies a group of messages that enables the player to transmit data, instructions, or state changes to the creative. The player prepends such message types with the SIMID:Player namespace.

SIMID:Player messages do not communicate ad media states; SIMID dedicates § 4.2 Messages Triggered by Media Element Events to report media status.

While some SIMID:Player messages expect resolve and/or reject creative responses, other messages do not require replies.

SIMID:Player messages summary.

Message type parameters Responses
§ 4.3.1 SIMID:Player:adSkipped n/a § 4.3.1.1 resolve
§ 4.3.2 SIMID:Player:adStopped code § 4.3.2.1 resolve
§ 4.3.3 SIMID:Player:appBackgrounded n/a § 4.3.3.1 resolve
§ 4.3.4 SIMID:Player:appForegrounded n/a n/a
§ 4.3.5 SIMID:Player:fatalError errorCode
errorMessage
§ 4.3.5.1 resolve
§ 4.3.6 SIMID:Player:init environmentData
creativeData
§ 4.3.6.1 resolve
§ 4.3.6.2 reject
§ 4.3.7 SIMID:Player:log message n/a
§ 4.3.8 SIMID:Player:resize mediaDimensions
creativeDimensions
fullscreen
n/a
§ 4.3.9 SIMID:Player:startCreative n/a § 4.3.9.1 resolve
§ 4.3.9.2 reject

4.3.1. SIMID:Player:adSkipped

The player posts a SIMID:Player:adSkipped message immediately after the user ends ad experience. For example, by clicking on the player-owned button. The player must stop the media and hide the creative iframe before sending the Player:adSkipped message.

The player waits for the resolve creative response. The player may time out if the creative takes too long to respond and unload the iframe. The timeout should be reasonable to allow creative to conclude ad-end logic.

4.3.1.1. resolve
The creative must respond to Player:adSkipped with resolve once its internal ad-end processes finalize. When the player receives resolve, it unloads the creative iframe.

4.3.2. SIMID:Player:adStopped

The player posts a SIMID:Player:adStopped message immediately after it terminates the ad for any reason other than a user generated skip. See § 4.3.1 SIMID:Player:adSkipped.

The player must stop media playback and hide the creative iframe before reporting Player:adStopped. The player must wait for a resolve response from the creative allotting a reasonable timeout to accommodate creative’s needs to finalize the ad-end logic.

dictionary MessageArgs {
  required unsigned short code;
};
code,
Ad stop cause code. Values:
  • 0 Unspecified
  • 1 User-initiated close
  • 2 Auto-close due to media playback completion
  • 3 Player-initiated close before media playback completion
  • 4 Creative-initiated close
4.3.2.1. resolve
The creative must respond to Player:adStopped with resolve once its internal ad-end processes finalize. When the player receives resolve, it unloads the creative iframe.

4.3.3. SIMID:Player:appBackgrounded

Within mobile in-app ads, when the app moves to the background, the player posts a SIMID:Player:appBackgrounded message.
4.3.3.1. resolve
The creative resonds to appBackgrounded with resolve message.

4.3.4. SIMID:Player:appForegrounded

Within mobile in-app ad executions, when the app moves from the background to the foreground, the player posts a SIMID:Player:appForegrounded message.

4.3.5. SIMID:Player:fatalError

The player posts a SIMID:Player:fatalError message when it encounters exceptions that disqualify the ad from displaying any longer. If feasible, the player stops the ad media.

Regardless of the player’s ability to terminate playback, the player should hide creative iframe and wait for resolve response before unloading iframe.

See § 6.8.5 Ad Errors Out

dictionary MessageArgs {
  required unsigned short errorCode;
  DOMString errorMessage;
};
errorCode,
See § 9 Error Codes.
errorMessage,
Additional information
4.3.5.1. resolve
The creative must respond to Player:fatalError with resolve. After resolve arrives, the player should remove the iframe.

See § 6.8.5 Ad Errors Out

4.3.6. SIMID:Player:init

The purpose of the SIMID:player:init message is to transport data to assist with the interactive component initialization. See § 6.2 Typical Initialization WorkFlow and § 6.4 Uninterrupted Initialization WorkFlow.

The creative must respond to Player:init with either § 4.3.6.1 resolve or § 4.3.6.2 reject.

dictionary MessageArgs {
  required EnvironmentData environmentData;
  required CreativeData creativeData;
};
environmentData,
Information about publisher’s environment and media player capacities.
creativeData,
Information that pertains to the specific creative.
dictionary CreativeData {
  required DOMString adParameters;
  DOMString clickThruUrl;
};
adParameters,
Typically, the value of VAST <AdParameters> node.
clickThruUrl,
Value of VAST <ClickThrough> node.
dictionary EnvironmentData {
  required Dimensions videoDimensions;
  required Dimensions creativeDimensions;
  required boolean fullscreen;
  required boolean fullscreenAllowed;
  required boolean variableDurationAllowed;
  required SkippableState skippableState;
  required DOMString version;
  DOMString siteUrl;
  DOMString appId;
  DOMString useragent;
  DOMString deviceId;
  boolean muted;
  float volume;
};

dictionary Dimensions {
  required long x;
  required long y;
  required long width;
  required long height;
};

enum SkippableState {"playerHandles", "adHandles", "notSkippable"};
videoDimensions,
Communicates media element coordinates and size.
creativeDimensions,
Communicates creative iframe coordinates and size the player will set when iframe becomes visible.
fullscreen,
The value true indicates that the player is currently in fullscreen mode.
fullscreenAllowed,
Communicates the player’s capacity to toggle screen modes.
  • The value true indicates that creative may request screen mode change.
  • The value false denotes that the player will reject calls to change screen mode.*
variableDurationAllowed,
Communicates player’s capacities† to:
  1. interrupt ad playback progress – the ability to pause the media;
  2. extend ad user experience length beyond ad media duration after ad playback completion;
  3. accommodate creative’s ad stop request.
The value true asserts that the player can:
  • pause media playback in response to creative’s requests;
  • extend ad experience after media playback completion (and abstaining from ad unloading) if the creative posts ad duration change instructions;
  • accommodate creative’s ad stop request.‡
skippableState,
Expresses:
  1. player’s ability to skip the ad;†
  2. VAST skippability-associated instructions logic management;
  3. button handling delegation.
The value playerHandles indicates that all of the following applies:
  • the publisher controls skippability logic (including handling of VAST skipoffset directives);
  • either VAST contains skipoffset or the skippability is the publisher-administered behavior;
  • the player implements the button;
  • the player will ignore skip requests from the creative.
The value adHandles signals that the player: The value notSkippable declares that the player:
  • cannot skip the ad;
  • ignores VAST skippability instructions;
  • will disregard skip request from the creative.
With both playerHandles and notSkippable, the creative avoids the button drawing.
version,
The SIMID version the player implements.
muted,
true if the player § is muted.◊
volume,
player’s § volume – expressed as a number between 0 and 1.0.
siteUrl,
The URI of the publisher’s site. May be full or partial URL.
appId,
The ID of the mobile app, if applicable.
useragent,
The information about SDKs as well as the player’s vendor and version. The value should comply with VAST-specified conventions.
deviceId,
IDFA or AAID
4.3.6.1. resolve

The creative acknowledges the initialization parameters.

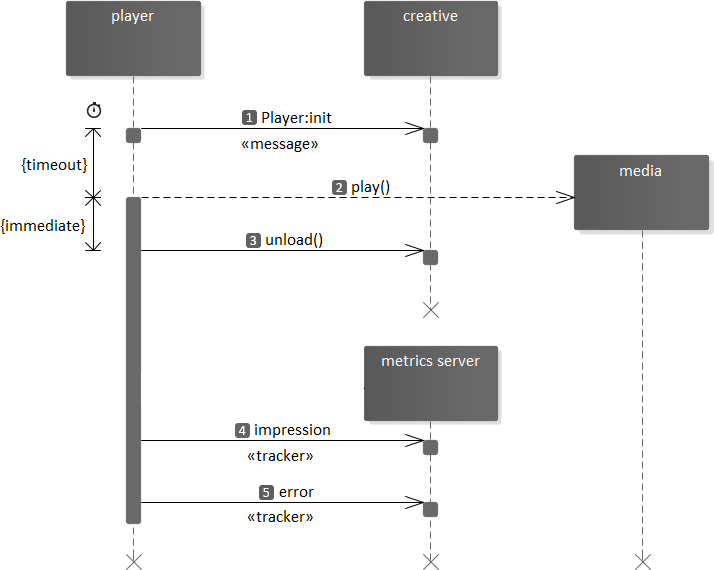

If the creative delays calling resolve, see § 6.5 Creative Delays Resolving Init.

4.3.6.2. reject

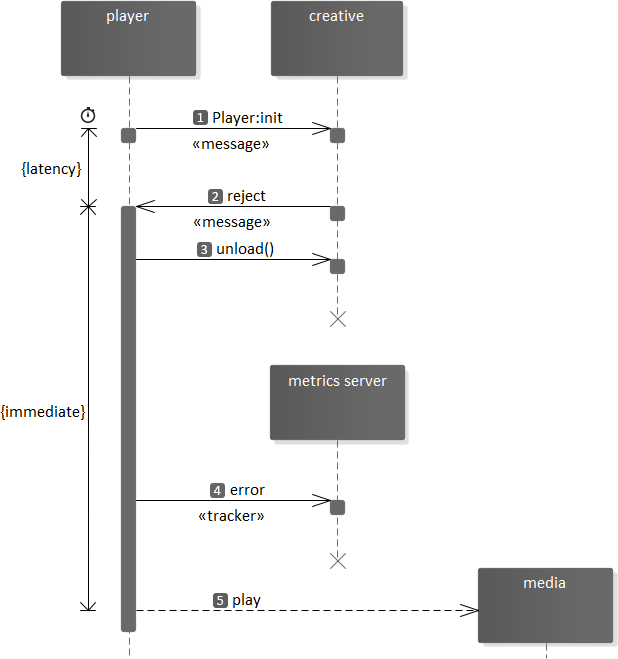

The creative may respond with a reject based on its internal logic.

dictionary MessageArgs {
  required unsigned short errorCode;
  DOMString reason;
};
errorCode,
See § 9 Error Codes.
reason,
Optional information about rejection cause.

The player then will follow the rejection workflow. See § 6.6 Creative Rejects Init.

4.3.7. SIMID:Player:log

The purpose of the Player:log message is to convey optional, primarily debugging, information to the creative.

Note: In SIMID prefixing log messages with “WARNING:” has a specific meaning. The player is communicating performance inefficiencies or specification deviations aimed at creative developers. For example, if the creative sends the requestChangeVolume message but does not use the correct parameters, a “WARNING:” message is appropriate.

dictionary MessageArgs {
  required DOMString message;
};
message,
Logging information.

4.3.8. SIMID:Player:resize

When the player changes any of ad components’ size, it posts the SIMID:Player:resize message. The message describes the media and creative sizes, independently, even if the dimensions are identical.
dictionary MessageArgs {
  required Dimensions videoDimensions;
  required Dimensions creativeDimensions;
  required boolean fullscreen;
};

dictionary Dimensions {
  required long x;
  required long y;
  required long width;
  required long height;
};
mediaDimensions,
Media element size and coordinates.
creativeDimensions,
SIMID iframe size and coordinates.*
fullscreen,
Value is true when the ad is in fullscreen mode.

4.3.9. SIMID:Player:startCreative

See § 6.3 Typical Start Creative WorkFlow

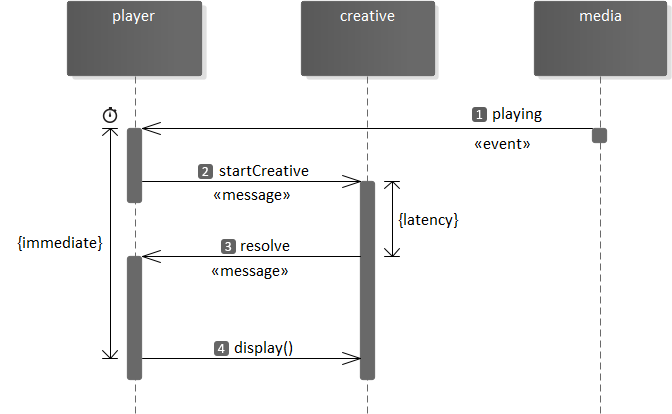

The player posts SIMID:Player:startCreative message when it is ready to make the iframe visible. The player must transmit Player:startCreative as close to the first media frame rendering as possible. The player waits for a § 4.3.9.1 resolve response to display the SIMID iframe. The interactive creative should be ready to reply to Player:startCreative immediately.

§ 4.3.6 SIMID:Player:init section describes the flow that precedes the instant the player emits a Player:startCreative message.

4.3.9.1. resolve
By posting resolve, the interactive creative acknowledges that it is ready for display. The creative should be ready to respond immediately. The player makes the iframe visible upon a resolve receipt

Refer to § 6.3 Typical Start Creative WorkFlow 2.

If the creative fails to reply with a resolve by the time ad media playback completes, the player reports VAST error tracker with the errorCode 1213. See § 9 Error Codes.

4.3.9.2. reject
When the creative responds with a reject, the player may unload the iframe. The player reports VAST error tracker with the errorCode the creative supplied.
dictionary MessageArgs {
  required unsigned short errorCode;
  DOMString reason;
};
errorCode,
See § 9 Error Codes.
reason,
Additional information.

4.4. Messages from the Creative to the Player

The creative posts messages to the player to requests the ad’s state changes, obtain data, and to send notifications. The creative prefixes its messages with the namespace SIMID:Creative.

SIMID:Creative messages may require the player to accept and process arguments. With some messages, the creative expects the player to respond with resolutions.

Note: In SIMID, the creative initializes the session and posts the first message, createSession. See § 8.4 Session Layer.

SIMID:Creative messages summary.

Message type ars parameters Responses
§ 4.4.1 SIMID:Creative:clickThru x
y
n/a
§ 4.4.2 SIMID:Creative:fatalError errorCode
errorMessage
n/a
§ 4.4.3 SIMID:Creative:getMediaState n/a § 4.4.3.1 resolve
§ 4.4.4 SIMID:Creative:log message n/a
§ 4.4.5 SIMID:Creative:reportTracking trackingUrls § 4.4.5.1 resolve
§ 4.4.5.2 reject
§ 4.4.6 SIMID:Creative:requestChangeAdDuration duration § 4.4.6.1 resolve
§ 4.4.6.2 reject
§ 4.4.7 SIMID:Creative:requestChangeVolume volume
muted
§ 4.4.7.1 resolve
§ 4.4.7.2 reject
§ 4.4.9 SIMID:Creative:requestExitFullscreen n/a § 4.4.9.1 resolve
§ 4.4.9.2 reject
§ 4.4.8 SIMID:Creative:requestFullscreen n/a § 4.4.8.1 resolve
§ 4.4.8.2 reject
§ 4.4.10 SIMID:Creative:requestPause n/a § 4.4.10.1 resolve
§ 4.4.10.2 reject
§ 4.4.11 SIMID:Creative:requestPlay n/a § 4.4.11.1 resolve
§ 4.4.11.2 reject
§ 4.4.12 SIMID:Creative:requestResize n/a § 4.4.12.1 resolve
§ 4.4.12.2 reject

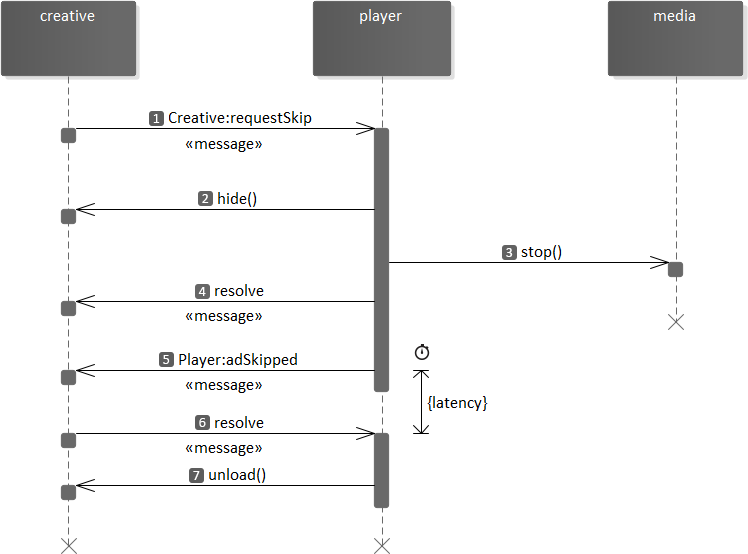

§ 4.4.13 SIMID:Creative:requestSkip n/a § 4.4.13.1 resolve
§ 4.4.13.2 reject

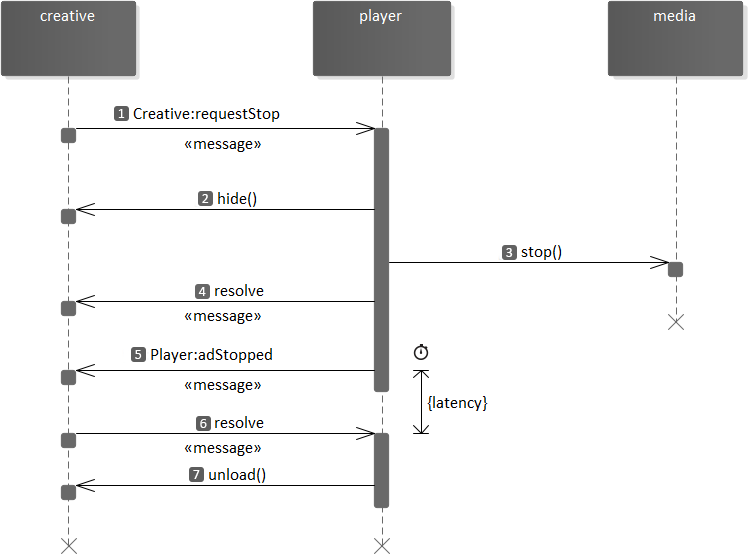

§ 4.4.14 SIMID:Creative:requestStop n/a § 4.4.14.1 resolve
§ 4.4.14.2 reject

4.4.1. SIMID:Creative:clickThru

The SIMID:Creative:clickThru message notifies the player of a clickthrough for event tracking. SIMID delegates clickthrough execution to the creative, including redirecting the user to the landing page. The interactive component posts clickThru only when the creative classifies a user interaction as a clickthrough.

The message, clickThru, is not an explicit media-pausing directive to the player. If the environment permits, the player must pause ad media in all cases when the user navigates away from the player hosting page or app, including clickthrough. See Page Visibility API.

dictionary MessageArgs {
  short x;
  short y;
};
x,
The click left offset in the creative’s coordinate system.
y,
The click top offset in the creative’s coordinate system.

4.4.2. SIMID:Creative:fatalError

The creative posts SIMID:Creative:fatalError in cases when its internal exceptions prevent the interactive component from further execution. In response to the Creative:fatalError message, the player unloads the SIMID iframe and reports VAST error tracker with the errorCode specified by the creative. The ad media playback must stop, if possible.
dictionary MessageArgs {
  required unsigned short errorCode;
  DOMString errorMessage;
};
errorCode,
See § 9 Error Codes.
errorMessage,
Additional information.

4.4.3. SIMID:Creative:getMediaState

The creative posts a SIMID:Creative:getMediaState message to request the current ad media states values.
4.4.3.1. resolve
The player should always respond to Creative:getMediaState with a resolve, including situations when the player is unable to provide all expected values.
dictionary MessageArgs {
  DOMString currentSrc;
  float currentTime;
  float duration;
  boolean ended;
  boolean muted;
  boolean paused;
  float volume;
  boolean fullscreen;
};
currentSrc,
The URI to the media publisher chooses for the playback. This value is optional and may not be provided in the case of server side ad insertion.
currentTime,
The time elapsed since the first ad media frame.
duration,
Ad media duration.
ended,
In HTML, the value of HTMLMediaElement.ended attribute.
muted,
In HTML, the value of HTMLMediaElement.muted attribute.
paused,
In HTML, the value of HTMLMediaElement.paused attribute.
volume,
In HTML, the value of HTMLMediaElement.volume attribute.
fullscreen,
he value is true if the media element is in full screen..

4.4.4. SIMID:Creative:log

The message SIMID:Creative:log enables the creative to communicate arbitrary information to the player.

Note: If the log message purpose is to notify the player about the player’s non-standard behavior, the creative prepends Message.args.message value with “WARNING:” string. Warning messages are used to inform player developers about occurances of non-fatal issues.

dictionary MessageArgs {
  required DOMString message;
};
message,
Logging information.

4.4.5. SIMID:Creative:reportTracking

The SIMID:Creative:reportTracking message enables a creative to delegate arbitrary metrics reporting to the player.

The creative may inject macros into trackers URIs.

In response to the reportTracking message, the player must:

dictionary MessageArgs {
  required Array trackingUrls;
};
trackingUrls,
Array of URIs.
4.4.5.1. resolve
The player posts a resolve after it sends the trackers.
4.4.5.2. reject
The player posts a reject if it did not send the trackers.
dictionary MessageArgs {
  required unsigned short errorCode;
  DOMString reason;
};
errorCode,
See § 9 Error Codes.
reason,
Additional information.

4.4.6. SIMID:Creative:requestChangeAdDuration

In response to user interaction, the creative is requesting a new ad duration.

In SIMID, ad’s media determines the initial ad duration. The ad span may change due to user interaction. When ad duration changes, the creative posts Creative:requestChangeAdDuration message that communicates an updated value. In response to the requestChangeAdDuration message, the player adjusts ad-end timing and updates its ad progress UI (eg., countdown).

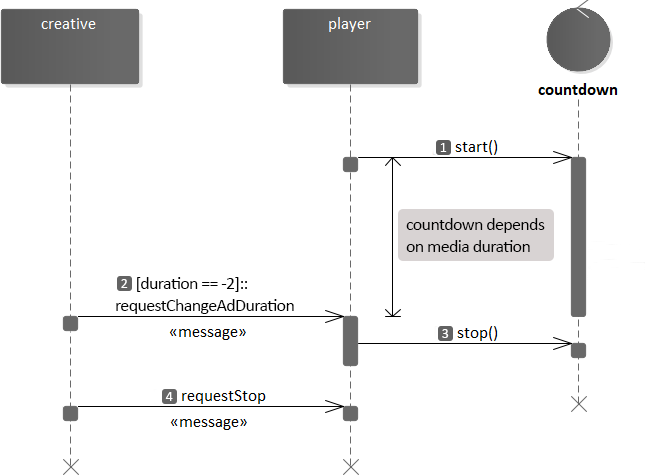

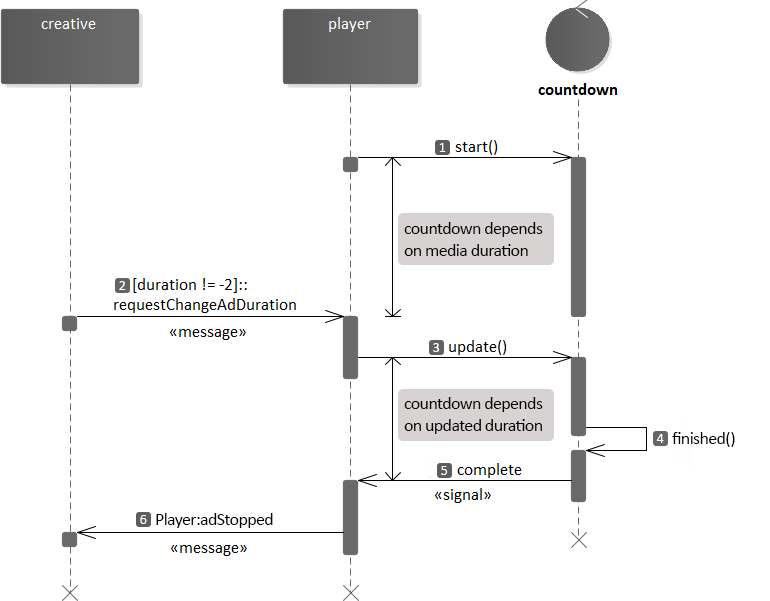

The creative expresses a known duration value in seconds. In cases where the duration is unknown (typically due to user interaction), the value is -2. With a known duration, the player unloads the ad automatically once the countdown (ad remaining time) reaches zero. See § 6.9.1 Ad Extends Beyond Media Completion 456).

When the duration value is -2, the player displays the ad indefinitely until the creative posts § 4.4.14 SIMID:Creative:requestStop. See § 6.9.3 Ad Duration Changed Workflow - Unknown Time step 4).

Note: The player communicates its capacities to modify the ad duration with § 4.3.6 SIMID:Player:init message args parameter variableDurationAllowed. If the value of variableDurationAllowed is false, the creative refrains from posting requestChangeAdDuration message.

dictionary MessageArgs {
  required float duration;
};
duration,
Value in seconds for a known duration.
The value -2 indicates an unknown duration.

See § 6.9 Ad Duration Changed Workflow.

4.4.6.1. resolve
By posting resolve response to requestChangeAdDuration message, the player signals that it will respect requested duration by modifying the ad duration-dependent behaviors.

Note: The player must accommodate an ad duration change directive if the value of the § 4.3.6 SIMID:Player:init message parameter variableDurationAllowed is true.

4.4.6.2. reject
By posting reject response to requestChangeAdDuration message, the player states that:

Note: The single SIMID-supported reason for a reject in response to requestChangeAdDuration is the player’s inability to alter media progress.

4.4.7. SIMID:Creative:requestChangeVolume

The creative requests ad volume change by posting a SIMID:Creative:requestChangeVolume message.
dictionary MessageArgs {
  required float volume;
  required boolean muted;
};
volume,
The number between 0 and 1.*
muted,
true if media audio should be muted.*
4.4.7.1. resolve
By posting resolve message, the player signals it has changed the media audio states to the requested values.
4.4.7.2. reject
By posting reject message, the player signals that it did not change the audio state.

4.4.8. SIMID:Creative:requestFullscreen

The creative requests the player to transition the ad into fullscreen mode by posting a SIMID:Creative:requestFullscreen message.

Note: the player communicates its capacity to toggle screen modes with § 4.3.6 SIMID:Player:init message parameter fullscreenAllowed. When the value of fullscreenAllowed is false, the creative refrains from posting Creative:requestFullscreen message.

4.4.8.1. resolve
By posting resolve response to requestFullscreen message, the player signals that it moved both the media element and the SIMID iframe into fullscreen mode.
4.4.8.2. reject
By posting reject response to requestFullscreen message, the player signals that it did not change the screen mode because it is either:

4.4.9. SIMID:Creative:requestExitFullscreen

The creative requests the player to transition the ad into normal-screen mode by posting a SIMID:Creative:requestExitFullscreen message.

Note: the player communicates its capacity to toggle screen modes with § 4.3.6 SIMID:Player:init message parameter fullscreenAllowed. When the value of fullscreenAllowed is false, the creative refrains from posting Creative:requestExitFullscreen message.

4.4.9.1. resolve
By posting resolve response to requestExitFullscreen message, the player signals that it moved both the media element and the SIMID iframe into normal-screen mode.
4.4.9.2. reject
The player responds to requestExitFullscreen message with a reject when it did not change the screen mode because it is either:

4.4.10. SIMID:Creative:requestPause

The creative requests the player to pause media playback by posting a SIMID:Creative:requestPause message.

Note: the player communicates its capacity to interrupt media playback with § 4.3.6 SIMID:Player:init message, parameter variableDurationAllowed. The creative must not post requestPause if the player sets variableDurationAllowed value to false.

4.4.10.1. resolve
The player replies to Creative:requestPause with a resolve if it paused the media.
4.4.10.2. reject
The player replies to Creative:requestPause with a reject if it did not pause the media or the playback is already paused.

4.4.11. SIMID:Creative:requestPlay

The creative requests the player to resume media playback by posting a SIMID:Creative:requestPlay message.

Note: the player communicates its capacity to interrupt media playback with § 4.3.6 SIMID:Player:init message, parameter variableDurationAllowed. The creative must not post requestPlay if the player sets variableDurationAllowed value to false.

4.4.11.1. resolve
The player replies to Creative:requestPlay with a resolve if it resumed media playback.
4.4.11.2. reject
The player replies to Creative:requestPlay with a reject if it did not resume the media or the playback is already in progress.

4.4.12. SIMID:Creative:requestResize

The creative requests ad resize by posting a SIMID:Creative:requestResize message.

The player must not resize the ad unless it can change the dimensions of both media element and SIMID iframe to the values specified by the Creative:requestResize message.

Note: the message requestResize must not be used to change screen mode. See the § 4.4.8 SIMID:Creative:requestFullscreen and § 4.4.9 SIMID:Creative:requestExitFullscreen messages.

dictionary MessageArgs {
  required Dimensions mediaDimensions;
  required Dimensions creativeDimensions;
};
dictionary Dimensions {
  required long x;
  required long y;
  required long width;
  required long height;
};

mediaDimensions,
Media element size and coordinates.
creativeDimensions,
SIMID iframe size and coordinates.
4.4.12.1. resolve
The player replies to requestResize with a resolve if it has resized the ad and set the dimensions to the values specified by the requestResize message.
4.4.12.2. reject
The player responds to requestResize with reject when it ignores the message or is unable to complete the resizing.

4.4.13. SIMID:Creative:requestSkip

The creative requests the player skip ad playback if possible.

See § 6.8.2 Creative Skips Ad

4.4.13.1. resolve
If the player skips the ad, it responds with a resolve. The player then goes through its skip workflow. See § 4.3.1 SIMID:Player:adSkipped 567
4.4.13.2. reject
The player replies with a reject if it cannot skip the ad. With the skip rejection:

4.4.14. SIMID:Creative:requestStop

The creative requests the player stop video playback if possible.

See § 6.8.6 Ad Requests Stop

4.4.14.1. resolve
If the player can stop the ad, it responds with a resolve (diagram 13, 4). The player then goes through § 6.8.6 Ad Requests Stop workflow (diagram 13, 567).
4.4.14.2. reject
If the player cannot stop the ad, it responds with a reject. With the requestStop rejection:

The creative keeps communication with the player open; it waits for, and responds to, the player transmitting ad completion related messages.

5. Referencing a SIMID creative from VAST

The VAST 4.x response designates the <InteractiveCreativeFile> element to describe the ad’s interactive component data. For SIMID, <InteractiveCreativeFile> element must include the following required attributes and their values: type="text/html" and apiFramework="SIMID".

<InteractiveCreativeFile type="text/html" apiFramework="SIMID" variableDuration="true">
    <![CDATA[https://adserver.com/ads/creative.html]]>
</InteractiveCreativeFile>

The value of the apiFramework attribute identifies SIMID as the required API for the creative. Players that do not support the SIMID API may load an audio or video file included with the ad, but they will not load or play the SIMID creative.

Media players that do support the SIMID API should handle version negotiation between the creative and the media player via the § 6.1 How to Handle Ad Loading algorithm. The SIMID API version is not identified by any element or attribute in the VAST file.

A third, optional attribute which may be included on the InteractiveCreativeFile element is variableDuration="true". If present, this attribute indicates that the ad unit is only playable if the media player allows the creative to pause playback of the ad’s audio or video and extend the duration of the ad break (for example, with interactive content such as a game or survey). If the player does not support or allow this capability, then it must not render the current ad’s audio/video or SIMID creative. The player should error out the ad instead (and either resume its primary content or continue on to the next ad in the current ad pod).

6. Common Workflows

6.1. How to Handle Ad Loading

The player must follow this workflow for loading an ad. See Diagram - SIMID Loading and Initialization below.

  1. The player creates an iframe for the SIMID interactive component. The iframe should start hidden. While invisible, the iframe must be capable of executing JavaScript and loading resources.

  2. The player starts listening to the message event on the window that is the parent of the creative iframe.

  3. The player sets the iframe src attribute to the URL provided by the creative’s VAST <InteractiveCreativeFile/> element. The player must assume the iframe is cross-origin.

  4. The player waits until the creative initializes a session and posts createSession message (see § 8.4 Session Layer). The player responds to the session initialization with a resolve message.

  5. The player sends a § 4.3.6 SIMID:Player:init message with relevant parameters. The player waits until the creative responds with § 4.3.6.1 resolve. If the creative responds with § 4.3.6.2 reject, the player should unload the creative’s iframe.

  6. Where possible, to synchronize media playback and the creative UI, the player should wait until both the creative has responded to the § 4.3.6 SIMID:Player:init with § 4.3.6.1 resolve and the media is ready to play. Media readiness means sufficient payload arrived, and the first frame shows.

  7. When the media starts, the player sends a § 4.3.9 SIMID:Player:startCreative message. The creative should respond to § 4.3.9 SIMID:Player:startCreative message with § 4.3.9.1 resolve immediately.

  8. The player makes the iframe visible. With video ads, the player must position the iframe over media element at player’s upper-left corner and set iframe dimensions to media’s width and height.

SIMID Loading and Initialization

SIMID Initialization.
  1. Player starts listening to message event on the window.
  2. Player creates hidden iframe.
    1. Player sets iframe.src to the value of the VAST <InteractiveCreativeFile> element.
    2. Player appends iframe to its container.
  3. Creative loads and posts createSession message.
    1. Player responds with resolve immediately.
  4. Player posts § 4.3.6 SIMID:Player:init immediately.
    1. Creative responds with § 4.3.6.1 resolve as soon as possible.
    2. Alternatively, the creative may reject Player:init. In such cases:
      1. Creative posts § 4.3.6.2 reject.
      2. Player unloads creative.
  5. Player initializes media at its discretion.
    1. Media playback begins.
  6. Player posts § 4.3.9 SIMID:Player:startCreative immediately.
    1. Creative should respond to Player:startCreative with § 4.3.9.1 resolve immediately.
  7. Player makes SIMID iframe visible.

6.2. Typical Initialization WorkFlow

The ideal user ad experience has the simultaneous start of media playback and display of the interactive overlay (the SIMID creative). Once the SIMID creative recieves the Player:init message, its may not yet be ready to display (for example it maybe be loading assets). To accommodate this latency, the player posts a Player:init message before ad media playback begins and waits for the SIMID iframe to respond with § 4.3.6.1 resolve.

The player should post Player:init as soon as the creative dispatches a createSession message (section § 8.4.1 Establishing a New Session) Normal Ad Initilaizatioin Sequence, 12. SIMID creative code must be ready to process the Player:init message immediately 3).

After the player gets a resolve message Normal Ad Initilaizatioin Sequence, 4, it initializes media playback at its discretion 5. Once media rendering begins 6, the player reports impression 7 and posts § 4.3.9 SIMID:Player:startCreative 8.

Normal Ad Initilaization Sequence

Normal Ad Initilaizatioin Sequence
  1. Creative initializes the session.
  2. Player posts Player:init message immediately upon session creation.
  3. Creative proccesses initialization data and finalizes assets loading.
  4. Creative responds with § 4.3.6.1 resolve.
  5. Player starts media playback at its discretion.
  6. Media renders.
  7. Player reports impression.
  8. Player posts § 4.3.9 SIMID:Player:startCreative immediately.

6.3. Typical Start Creative WorkFlow

Normal Player:startCreative Sequence

startCreative normal sequence.
  1. Media playback begins.
  2. Player posts Player:startCreative.
  3. Creative responds with a resolve.
  4. Player displays the creative iframe.

6.4. Uninterrupted Initialization WorkFlow

In the case where publisher environments prohibit media playback interruptions, waiting for the creatives is not possible. The media player renders the ad media immediately - before the creative confirms its readiness (Special Creative Initialization Cases, 1). Some examples include SSAI and live broadcasts.

In these situations, the player keeps the iframe invisible and refrains from posting messages to the creative until it responds to the Player:init with a resolve message.

Special Creative Initialization Cases

Creative initialization special cases sequence
  1. Player initializes ad media playback.
  2. Player posts Player:init message after ad media playback started.
  3. Creative proccesses initialization data and finalizes assets loading. Sub-loading routines may cause latencies.
  4. Creative responds with § 4.3.6.1 resolve.
  5. Player posts § 4.3.9 SIMID:Player:startCreative immediately.

6.5. Creative Delays Resolving Init

The interactive creative responding to a Player:init message with a resolve message is a critical step in the SIMID ad serving flow (Init Diagram, 4 above). The player keeps the SIMID iframe invisible and does not post either SIMID:Player or SIMID:Media messages until the iframe replies with a resolve message.

If the interactive creative fails to respond to a Player:init message within the allotted time, the player may continue with ad media rendering only (Player:init resolve 2).

The player maintains the hidden interactive creative until ad media playback completion.

If the interactive creative does not resume communication by the playback end, the player must report the VAST error tracker (if available) with the code 1212. See Player:init resolve 5).

Player:init resolve delay

Player:init resolve delay
  1. Player posts Player:init message and establishes a timeout.
  2. Player starts ad media playback upon timeout expiration.
  3. Player reports impression.
  4. Media playback completes.
  5. Player reports error tracker.
  6. Player unloads the iframe.

6.6. Creative Rejects Init

The creative may respond with a reject based on its internal logic. In response to reject, the player proceeds with the ad media playback. The player may unload the iframe. The player reports VAST error trackers with the errorCode specified by the creative.

Player:init reject Sequence

Player:init reject sequence.
  1. Player posts Player:init message.
  2. Creative responds with a reject.
  3. Player unloads the creative iframe.
  4. Player reports VAST error tracker.
  5. Player starts media.

6.7. How to Handle Ad Playback

The media player is responsible for ad media playback handling as well as tracking media related events. The SIMID creative manages interactive content and internal tracking related to interactivity.

6.7.1. Ad Pause

If the variableDurationAllowed flag is set to true then the player should enable media pause by the SIMID creative via the SIMID:Creative:requestPause message. The player must respond to SIMID:Creative:requestPause with the AdPaused event.

When the SIMID creative would like to resume media playback, it should send a SIMID:Creative:requestPlay message. The player must respond to SIMID:Creative:requestPlay message with resolve and play the media.

6.7.2. Ad Resizing and Fullscreen

The player may resize the ad slot. The player must send a § 4.3.8 SIMID:Player:resize message any time the ad slot size is changed.

If fullscreenAllowed is true, the SIMID creative may send a § 4.4.8 SIMID:Creative:requestFullscreen message. The player must resize only the ad slot to fullscreen (not the video). The SIMID creative then will resize the video as it sees fit. The player must send a § 4.3.8 SIMID:Player:resize message to the SIMID creative with fullscreen set to true and videoDimensions and creativeDimensions set to the fullscreen dimensions.

If player goes fullscreen on its own. Then the player must send a § 4.3.8 SIMID:Player:resize message to the SIMID creative with fullscreen set to true and videoDimensions and creativeDimensions set to the fullscreen dimensions.

6.8. How to Handle Ad End and Unload

Following are cases where ad can end:

  1. Ad was skipped, either by player (see § 6.8.1 Player Skips Ad) or creative (See § 6.8.2 Creative Skips Ad).

  2. The creative has fired § 4.4.14 SIMID:Creative:requestStop message and the player has allowed the ad to stop.

  3. The player has fired § 4.3.2 SIMID:Player:adStopped message and the creative resolved.

  4. Ad errors out. See § 6.8.5 Ad Errors Out.

6.8.1. Player Skips Ad

Skip Ad Handled by Player

  1. The player sends a § 4.3.1 SIMID:Player:adSkipped message to the ad.

  2. The player hides the creative.

  3. The creative may dispatch any tracking pixels via § 4.4.5 SIMID:Creative:reportTracking

  4. The creative may wait for § 4.4.5.1 resolve from the reportTracking message.

  5. The creative dispatches resolve on the adSkipped message § 4.3.1.1 resolve.

  6. The player fires any skip tracking pixels.

  7. The player unloads the ad.

6.8.2. Creative Skips Ad

The creative requests ad skip by posting a SIMID:Creative:requestSkip message. If feasible, in response to requestSkip, the player terminates the ad and goes through the § 4.3.1 SIMID:Player:adSkipped message sequence.

Note: the SIMID interactive component implements skip related behavior and features ( button) only if the player delegates skippability to the creative - the value of § 4.3.6 SIMID:Player:init message args.environmentData.skippableState is "adHandles".

Creative:requestSkip Sequence

Creative:requestSkip sequence.
  1. Creative posts Creative:requestSkip message.
  2. Player hides the SIMID iframe.
  3. Player stops the ad media playback.
  4. Player responds with § 4.4.13.1 resolve.
  5. Player posts § 4.3.1 SIMID:Player:adSkipped message.
  6. Creative responds to Player:adSkipped with § 4.3.1.1 resolve.
  7. Player unloads the SIMID iframe.

6.8.3. Ad Ends Before Media Completion

This scenario applies when the creative signal to the player to dismiss the ad, typically at the prompting of the user. A good example is a survey that allows the viewer to skip immediately to content when completed.

  1. The ad cleans up and dispatches § 4.4.14 SIMID:Creative:requestStop.

  2. The player unloads the ad.

6.8.4. Ad Completes at Media Completion

When an ad finishes at the same time as its media.

  1. The player sends a § 4.3.2 SIMID:Player:adStopped message to the ad.

  2. The player hides the creative.

  3. The creative may dispatch any tracking pixels via § 4.4.5 SIMID:Creative:reportTracking

  4. The creative may wait for a § 4.4.5.1 resolve response message from the reportTracking message.

  5. The creative dispatches resolve on the adStopped message § 4.3.2.1 resolve.

  6. The player unloads the ad.

6.8.5. Ad Errors Out

The SIMID creative or the player may terminate the ad unit with an error at any time. If the SIMID creative indicates an error, the player should try to stop ad unit playback. This might not be possible in server side stitched ads.

The player may error out if the ad does not respond with § 4.3.6.1 resolve in a reasonable amount of time.

When an player errors out it must follow these steps.

  1. The player sends a § 4.3.5 SIMID:Player:fatalError message to the ad.

  2. The player hides the creative.

  3. The creative may dispatch any tracking pixels via § 4.4.5 SIMID:Creative:reportTracking

  4. The creative may wait for a § 4.4.5.1 resolve response from the reportTracking message.

  5. The creative dispatches resolve on the fatalError message § 4.3.5.1 resolve.

  6. The player unloads the ad.

6.8.6. Ad Requests Stop

The creative stops the ad by posting a SIMID:Creative:requestStop message.

If feasible, the player hides the iframe, stops media playback that is still in progress, and responds with a § 4.4.14.1 resolve. Subsequently, the player proceeds with the § 4.3.2 SIMID:Player:adStopped.

The SIMID interactive component engages ad stop functionality only if the player states its ability to vary ad duration. See § 4.3.6 SIMID:Player:init, Message.args.variableDurationAllowed details. The interactive component logic must expect that the player will unload SIMID iframe immediately upon posting a resolve response under the SIMID-compliant circumstances.

In the event the interactive component disregards or fails to accommodate player’s ability to resolve requestStop, the iframe remains visible and the player continues sending SIMID:Media and SIMID:Player messages. The creative should maintain communication with the player. See § 4.4.14.2 reject.

Creative:requestStop Sequence

Creative:requestStop sequence.
  1. Creative posts Creative:requestStop message.
  2. Player hides the SIMID iframe.
  3. Player stops the ad media playback.
  4. Player responds with § 4.4.14.1 resolve.
  5. Player posts § 4.3.2 SIMID:Player:adStopped message.
  6. Creative responds to Player:adStopped with § 4.3.2.1 resolve.
  7. Player unloads the SIMID iframe.

6.9. Ad Duration Changed Workflow

6.9.1. Ad Extends Beyond Media Completion

This scenario is only possible when the variableDurationAllowed flag is set to true. Media duration must only be extended in response to user interaction.

  1. User interacts at any point during playback of the media, triggering extended ad portion.

  2. The Creative dispatches § 4.4.6 SIMID:Creative:requestChangeAdDuration message with the new duration.

  3. The ad enters its extended phase.

  4. The creative dispatches § 4.4.14 SIMID:Creative:requestStop when extended phase is finished.

6.9.2. Ad Duration Changed Workflow - Known Time

Known Ad Duration Change Sequence

requestChangeAdDuration known duration change handling.
  1. Player starts countdown. Countdown depends on the media progress.
  2. Creative posts requestChangeAdDuration with the duration value greater than zero.
  3. Player modifies countdown that now depends on the specified by the creative ad duration.
  4. Countdown finishes.
  5. Player receives countdown completion notification.
  6. Player posts § 4.3.2 SIMID:Player:adStopped message.

6.9.3. Ad Duration Changed Workflow - Unknown Time

Unknown Ad Duration Change Sequence

requestChangeAdDuration unknown duration change handling.
  1. Player starts countdown. Countdown depends on the media progress.
  2. Creative posts requestChangeAdDuration with the duration value -2.
  3. Player stops countdown.
  4. Creative posts § 4.4.14 SIMID:Creative:requestStop message.

6.10. User Experience

Both ad creatives and media players should ensure that consumers are presented with a good ad experience.

This specification does not define the user experience for a close control (close button) or other generic media interaction behavior by the ad creative or the media player. The publisher media player is in full control over its user experience and can present its controls (or hide them) as needed. The publisher media player may dismiss the ad creative at any point in time. Some implementations may have a publisher provided close control, as well as various other controls, and others may not.

The ad creative can also request to be dismissed at any point in time. An ad creative may opt to show its own controls, including a close control.

7. Error Handling and Timeouts

If the media cannot be played the player should terminate the ad and fire an error using the standard VAST errors.

If either the interactive ad or player wants to terminate with an error the player should fire a 902 error. In cases where this is not possible like live server side ad insertion the player should remove the ad overlay and continue tracking quartiles and completion.

The ad or player should pass a specific error code to indicate why it errored out. The ad can also hand back a string with extra details about the error.

8. Messaging Protocol

In SIMID, the media player and the creative overlay communicate by exchanging asynchronous signals that maintain a custom messaging protocol. This protocol governs § 8.1 Data Layer, § 8.3 Transport Layer, and § 8.4 Session Layer.

8.1. Data Layer

SIMID messages transport data. In HTML environments, the data is the message argument of the Window.postMessage() function.

8.1.1. Data Structure

The message data implements the following data structure:

dictionary Message {
  required DOMString sessionId;
  required unsigned long messageId;
  required unsigned long timestamp;
  required DOMString type;
  any args;
};
sessionId,
A string that uniquely identifies the session to which Message belongs. See § 8.4 Session Layer.
messageId,
A message sequence number in the sender’s system. Each participant establishes its own independent sequence counter for the session. The first message messageId value is 0. The sender increments each subsequent messageId value by 1. In practice, this means that the creative and the player messageId values will be different based on the number of sent messages.
timestamp,
A number of milliseconds since January 1, 1970, 00:00:00 UTC (Epoch time). The message sender must set timestamp value as close as possible to the moment the underlying process occurs. However, the receiver should not assume that the timestamp value reflects the exact instant the message-triggering event occurred.
type,
A string that describes the message-underlying event and informs the receiver how to interpret the args parameter.
args,
Additional information associated with the message type.
Example of message data:
{
    sessionId: "173378a4-b2e1-11e9-a2a3-2a2ae2dbcce4",
    messageId: 10,
    timestamp: 1564501643047,
    type: "SIMID:Player:adStopped",
    args: {
        code: 0
    }
}

8.2. Messages Categories

The protocol defines two message classes:

Both primary and response messages implement the same data structure (see § 8.1.1 Data Structure).

8.2.1. resolve Messages

The receiver confirms successful message processing by replying with a resolution message.

Message.type must be resolve.

Message.args must be a ResolveMessageArgs object:

dictionary ResolveMessageArgs {
    required unsigned long messageId;
    any value;
};
messageId,
The value of the messageId attribute of the message to which the receiver responds.
value,
Additional data associated with this resolve message.
Example of resolve message:
{
    sessionId: "173378a4-b2e1-11e9-a2a3-2a2ae2dbcce4",
    messageId: 10,
    timestamp: 1564501643047,
    type: "resolve",
    args: {
        messageId: 5,
        value: {
            id: 45
        }
    }
}

8.2.2. reject Messages

When the receiver is unable to process the message, it responds with rejection.

Message.type must be reject.

Message.args.value must be a RejectMessageArgsValue object:

dictionary RejectMessageArgsValue {
    unsigned long errorCode;
    DOMString message;
};
errorCode,
The error code associated with the reason the receiver rejects the message.
message,
Additional information.
Example of reject message:
{
    sessionId: "173378a4-b2e1-11e9-a2a3-2a2ae2dbcce4",
    messageId: 10,
    timestamp: 1564501643047,
    type: "resolve",
    args: {
        messageId: 5,
        value: {
            errorCode: 902,
            message: "The feature is not available."
        }
    }
}

8.3. Transport Layer

Transport is a communication mechanism that can send serialized messages between two parties.

8.3.1. postMessage Transport

In HTML environments, where the player loads creative overlay in a cross-origin iframe, the parties utilize the standard Window.postMessage() API as the message transport mechanism.

8.3.2. Message Serialization

The message sender serializes data into a JSON string. The deserialized JSON must result in a clone of the original Message data object.

In JavaScript, JSON.stringify() performs serialization; JSON.parse() - deserialization.

8.4. Session Layer

The media player may manage several ads that are in different phases of their lifespans; multiple concurrent sessions may be active. For example, while the player is rendering ad-A, it preloads and engages ad-B. Simultaneous two-way communication between the player and both ads persists.

Each session has a unique identifier. All messages that belong to a specific session must reference the same session id.

8.4.1. Establishing a New Session

SIMID delegates the session initialization to the creative overlay. The creative generates a unique session id and posts the first session message with the Message.type createSession. By posting the createSession message, the creative acknowledges its readiness to receive messages from the player.

Note: There is no expectation for the interactive component to be entirely able to participate in ad rendering at the time the creative signals createSession message. Full creative initialization may occur at later stages when the player provides complete data - see § 4.3.6 SIMID:Player:init.

Example of createSession Message data:
{
    sessionId: "173378a4-b2e1-11e9-a2a3-2a2ae2dbcce4",
    messageId: 0,
    timestamp: 1564501643047,
    type: "createSession",
    args: { }
}

Creative should initialize the session as soon as possible. The player should establish a reasonable timeout for the session initialization message receipt.

The player responds to createSession with a resolve message.

Typical Session Initialization Sequence

Typical session initialization.
  1. The player starts a createSession message timeout.
  2. The player loads creative.
  3. Creative posts createSession message.
  4. The player cancels the timeout.
  5. The player responds with a resolve message.
  6. The player initializes creative. See § 4.3.6 SIMID:Player:init.

8.4.2. Session Establishing Delays and Failures

Typically, the player should wait for the creative to post a createSession message before proceeding to the simultaneous rendering of both ad media and the interactive component. However, SIMID recognizes scenarios when:

The creative’s failure to establish a session does not prevent the player from rendering the ad media. If the creative does not post a createSession message on time, the player may proceed with the ad media rendering. However, the player allows the creative to recover in the middle of the ad media playback. The player:

If the creative has not established a session before the media playback is complete, the player will report a VAST Error tracker with the proper error code. Examples of situations when this may occur are listed below.

Sequence for a failed session initialization

  1. The timeout expires.
  2. The createSession message does not arrive.
  3. The player starts ad media.
  4. The player reports the impression.
  5. The ad media playback completes.
  6. The player reports the VAST error tracker.
  7. The player unloads the creative iframe.

Creative posts a createSession message after the timeout occurs

  1. The timeout expires.
  2. The player retains the interactive component.
  3. The player initiates ad media playback.
  4. The player reports the impression.
  5. The player does not post messages to the creative.
  6. The creative posts createSession message.
  7. The player proceeds with the creative initialization.

9. Error Codes

The table below is the list of error codes the player and the creative use with reject messages. SIMID allocates the range 1100-1199 to the errors that the creative reports; the range 1200-1299 to the errors the player reports.

Error Codes.

Error Code Error Type Description
1100 Unspecified error. Catchall error if the creative could not find a matching error code. The creative should be more specific in the error message.
1101 Resources could not be loaded. The SIMID creative tried to load resources but failed.
1102 Playback area not usable by creative. The dimensions the creative needed were not what it received.
1103 Wrong SIMID version. The creative could not support the players version.
1104 Creative not playable for a technical reason on this site.
1105 Request for expand not honored. The creative requested to expand but the player did not allow it.
1106 Request for pause not honored. The creative requested pause but the player did not pause.
1107 Play mode not adequate for creative. The creative requires playback control but the player is not giving control. This error should only fire if the VAST for the ad specified that it needs playback control.
1108 Ad internal error. The creative had an error not related to any external dependencies.
1109 Device not supported. The creative could not play or render on the device.
1110 The player is not following the spec in the way it sends messages.
1111 The player is not responding adequately to messages.
1200 Unspecified error. Catchall error if the player could not find a matching error code. The player should be more specific in the error message.
1201 Wrong SIMID version. The player could not support the creatives version.
1202 SIMID creative requesting more time than the player is willing to support.
1203 SIMID creative requesting more functionality than the player is willing to support.
1204 SIMID creative is doing actions not supported on this site.
1205 SIMID creative is overloading the postmessage channel.
1206 The SIMID media could not be loaded.
1207 Media Timeout. The ad media creative buffered for too long and timed out.
1208 The SIMID creative is taking too long to resolve or reject messages.
1209 The SIMID creatives media from the VAST response is not supported on this device.
1210 The SIMID creative is not following the spec when initializing.
1211 The SIMID creative is not following the spec in the way it sends messages.
1212 The SIMID creative did not reply to the initialization message.
1213 The SIMID creative did not reply to the start message.

10. Terminology

SIMID VAST

The VAST document that contains the SIMID ad unit components.

SIMID Ad Unit

The SIMID ad media and the SIMID ad creative.

SIMID Media

The SIMID ad media component if it’s a progressively downloaded media file.

SIMID Media Stream

The SIMID ad media component if it’s SSAI media.

SIMID Live Media Stream

The SIMID ad media component if live streaming media.

SIMID Creative

The SIMID ad creative component (HTML document and assets) that overlays the SIMID ad video.

SIMID Secondary Video

Video assets that are loaded as part of the SIMID creative and not the primary media.

Content Media

Any reference to media that is NOT a component or asset of the ad unit.

Conformance

Conformance requirements are expressed with a combination of descriptive assertions and RFC 2119 terminology. The key words “MUST”, “MUST NOT”, “REQUIRED”, “SHALL”, “SHALL NOT”, “SHOULD”, “SHOULD NOT”, “RECOMMENDED”, “MAY”, and “OPTIONAL” in the normative parts of this document are to be interpreted as described in RFC 2119. However, for readability, these words do not appear in all uppercase letters in this specification.

All of the text of this specification is normative except sections explicitly marked as non-normative, examples, and notes. [RFC2119]

Examples in this specification are introduced with the words “for example” or are set apart from the normative text with class="example", like this:

This is an example of an informative example.

Informative notes begin with the word “Note” and are set apart from the normative text with class="note", like this:

Note, this is an informative note.

Index

Terms defined by this specification

Terms defined by reference

References

Normative References

[RFC2119]
S. Bradner. Key words for use in RFCs to Indicate Requirement Levels. March 1997. Best Current Practice. URL: https://tools.ietf.org/html/rfc2119
[WebIDL]
Boris Zbarsky. Web IDL. 15 December 2016. ED. URL: https://heycam.github.io/webidl/

IDL Index

dictionary MessageArgs {
  required float duration;
};

dictionary MessageArgs {
  required unsigned short error;
  required DOMString message;
};

dictionary MessageArgs {
  required float currentTime;
};

dictionary MessageArgs {
  required float volume;
  required boolean muted;
};

dictionary MessageArgs {
  required unsigned short code;
};

dictionary MessageArgs {
  required unsigned short errorCode;
  DOMString errorMessage;
};

dictionary MessageArgs {
  required EnvironmentData environmentData;
  required CreativeData creativeData;
};

dictionary CreativeData {
  required DOMString adParameters;
  DOMString clickThruUrl;
};

dictionary EnvironmentData {
  required Dimensions videoDimensions;
  required Dimensions creativeDimensions;
  required boolean fullscreen;
  required boolean fullscreenAllowed;
  required boolean variableDurationAllowed;
  required SkippableState skippableState;
  required DOMString version;
  DOMString siteUrl;
  DOMString appId;
  DOMString useragent;
  DOMString deviceId;
  boolean muted;
  float volume;
};

dictionary Dimensions {
  required long x;
  required long y;
  required long width;
  required long height;
};

enum SkippableState {"playerHandles", "adHandles", "notSkippable"};

dictionary MessageArgs {
  required unsigned short errorCode;
  DOMString reason;
};

dictionary MessageArgs {
  required DOMString message;
};

dictionary MessageArgs {
  required Dimensions videoDimensions;
  required Dimensions creativeDimensions;
  required boolean fullscreen;
};

dictionary Dimensions {
  required long x;
  required long y;
  required long width;
  required long height;
};

dictionary MessageArgs {
  required unsigned short errorCode;
  DOMString reason;
};

dictionary MessageArgs {
  short x;
  short y;
};

dictionary MessageArgs {
  required unsigned short errorCode;
  DOMString errorMessage;
};

dictionary MessageArgs {
  DOMString currentSrc;
  float currentTime;
  float duration;
  boolean ended;
  boolean muted;
  boolean paused;
  float volume;
  boolean fullscreen;
};

dictionary MessageArgs {
  required DOMString message;
};

dictionary MessageArgs {
  required Array trackingUrls;
};

dictionary MessageArgs {
  required unsigned short errorCode;
  DOMString reason;
};

dictionary MessageArgs {
  required float duration;
};

dictionary MessageArgs {
  required float volume;
  required boolean muted;
};

dictionary MessageArgs {
  required Dimensions mediaDimensions;
  required Dimensions creativeDimensions;
};
dictionary Dimensions {
  required long x;
  required long y;
  required long width;
  required long height;
};


dictionary Message {
  required DOMString sessionId;
  required unsigned long messageId;
  required unsigned long timestamp;
  required DOMString type;
  any args;
};

dictionary ResolveMessageArgs {
    required unsigned long messageId;
    any value;
};

dictionary RejectMessageArgsValue {
    unsigned long errorCode;
    DOMString message;
};
